Summary

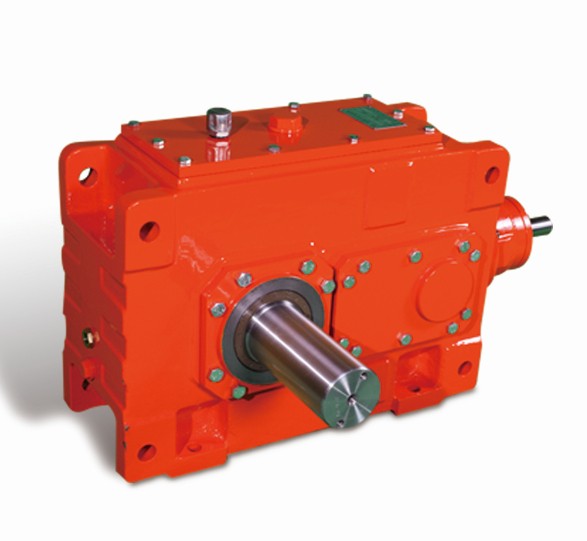

A new type of hardened high power gearbox, with large torque range, the unit structure of modular design can be installed horizontal and vertical mounting. Have a solid shaft, hollow shaft and the hollow shaft output shrink disc. A wide range of applications, using high strength alloy steel carburizing and quenching with high efficiency and high travel, life of gear and high allowable axial and radial load, low noise, high reliability and compact structure etc..
Characteristic
The P, V gear box using a common design, according to customer demand for industry-specific variant of the gear box.
The implementations of parallel axis, orthogonal axis, vertical and horizontal universal box, reduced components, specifications to increase.
Equipped with sound-absorbing box structure, the larger surface area and a large box fan, cylindrical gears and spiral bevel gears adopt advanced grinding technology, the machine's temperature, noise reduction, improved reliability of operation, transfer power.
Input mode: motor flange, shaft input.
The output mode: with a flat key solid shaft, hollow shaft with flat key locking disc coupling of the hollow shaft, hollow shaft, spline coupling spline coupling solid shaft and solid shaft flange connection.
The installation: horizontal and vertical, swinging base type torque arm.
The P, V series of products are 3 ~ 26 specifications, gear drive series with 1 ~ 4 grade, ratio of 1.25 ~ 450.
It can be combined with the R/K/S series, so as to obtain larger transmission ratio.
